Npt (national pipe thread) and nps (national pipe straight) have the same thread angle, shape, and pitch (threads per inch). Black/self colour heavy steel threaded or weldable barrel nipple with a male/male thread from 1/8″ to 4″.
20Pcs 1/2'' To 9/16'' Male Thread Car Straight Iron Hose Pipe Fitting Connector - Eco Autostore
I have never run across such a thing before, so i am asking if there are standard fittings that use a straight.
Nontapered iron piping. The best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the american national pipe tapered thread, or npt. Malleable iron pipe fittings galvanized and black with 4 different standard and complete range of products. Perhaps this is a case of the ips designation refering to pipe size.
They find extensive application for potable water transmission and distribution. The female thread is abbreviated fht (for female hose thread), and the male part is abbreviated mht (for male hose thread). 1 inch sched 40 iron pipe is.130 wall thickness.
The tapered design is crucial to acheiving a pressure seal. Assembling parts and pipe made of dissimilar materials need special care. It fills any voids between the two threads that could cause a spiral leak.
A class 150 rating means these fittings. Alternatively you can use a hexagon nipple black malleable or check out our whole range of black malleable. For extended lengths of these barrel nipples please visit our extended lengths listing.
There are three common configurations groove x groove, groove x bevel and groove x mpt. High quality of carbon steel butt welded fittings with ansi/asme b16.9 and jis b2304/b2311 standard. Npt is a tapered thread, designed to seal on the threads,.
However, npt threads are tapered and nps threads are straight (parallel). According to the googles, ips is iron pipe straight thread. In the same fashion as the straight threads, you can either measure the tapered profile, or simply observe the decreasing diameter of the threads.
Tapered pipe fittings are the most common fluid power connection with national. Tapered threads are threads that taper along the thread profile and decrease in diameter as you travel down the part. I would try installing it with a few wraps of tape, followed with some pipe dope.
If you’re running across an instance where a male/female thread engages but only turns a little bit you are more than likely dealing with two different threading styles. National pipe tapered and straight threads will engage each other for maybe one or two turns before the tapering of the npt fittings starts to get in the way. I can run a 1 npt tap into it all the way but it never bottoms out because the thread is straight not tapered.
But, to actually determine the size of a pipe, the outside diameter of each pipe or fitting must be measured and compared to the table for size identification. That said, however, i did find a couple of references online that talked of nps straight pipe as ips. Internal linings and external coatings are applied to prevent corrosion of ductile iron.
Nptf = national pipe thread fuel. 1 rigid conduit is.126 inch wall. Tapered pipe threads are commonly found on ends of pipe, nipples and.
That ips is iron pipe size. Npt = national pipe thread. Pipe threads used in hydraulic circuits can
Class 150 is one of the ratings given to galvanized and black malleable iron pipe fittings as determined by the asme (american society of mechanical engineers). The msc customer support guy assured me that all their fittings sized as ips in the catalog do in fact have npt threads (ansi b1.20.1). The thread is generally a straight.
Mip is an acronym for male iron pipe, and fip is an acronym for female iron pipe. Tapered pipe thread is commonly found on ends of pipe. Both npt and nps have the same thread angle, shape, and pitch (threads per inch).
They also function as lubricants between the male and female threads. Sealant and tapered pipe threads. Mips are also a type of npt pipe.
Both threads have a 60° included angle and have flat peaks and valleys. If it seals, keep it. Black malleable iron barrel nipple bspt.
220v 1.5 kw electric hot tapping machine for carbon steel ductile iron pipe us $3,100 / set ple50 model plate heat exchanger opening closing hydraulic torque bolting tool A male iron pipe (mip) is an externally threaded pipe or fitting connection to an fip or fpt fitting. Npt has a tapered male and female thread which seals with teflon tape or jointing compound.
The designation typically referred to is npt (national pipe threads) when the tapered male threads are screwed into the matching tapered female piece, the more you. For example, a 3/4 npt pipe thread has an outside diameter of 1.050 inches. Ductile iron pipe dimensions (with pdf) ductile iron pipes are are mode of ductile cast iron and hence the name.
Both threads have a 60° included angle and have flat peaks and valleys. Rigid conduit is thick, and is threaded for every use. Ductile iron pipes are produced by centrifugal casting method.
However, npt threads are tapered and nps threads are straight (parallel). On this steam whistle the side inlet is threaded. Received 288 votes on 257 posts.
I assume this would seal using a gasket on the outer faced off surface. The various types are each named with a symbol and a full name, as follows: Thread instead of a tapered thread on pipe.
Grooved pipe nipples are commonly used in commercial or industrial construction, mining and process piping applications. 2 inch rigid is.146 inch wall thickness, while sched 40 iron is.150. The pipe thread size as shown in column 3 of the table below is measured and based on the inside of the pipe.
Georg Fischer Malleable Iron Fitting Socket, 3/4 In Bspp Female (Connection 1), 3/4 In Bspp Female (Connection 2) - Rs Components Indonesia

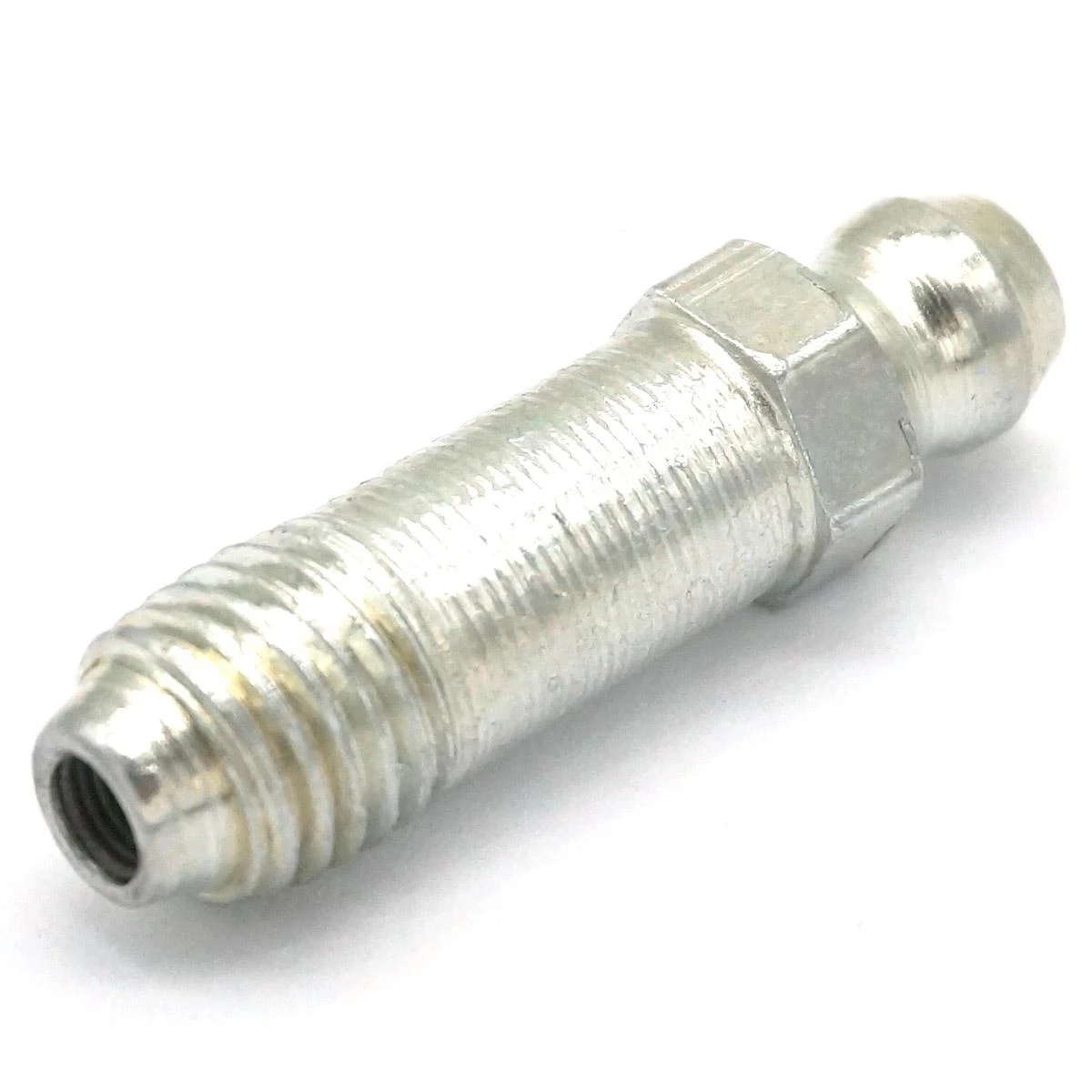

M8 Pitch 1.0Mm Metric Male Lengthen Straight Iron Grease Zerk Nipple Fitting For Grease Gun Machine Tool Accessories - Aliexpress Home Improvement
Why Is It Important To Know The Od/Id Of Ductile Iron Pipe? - Mcwane Ductile - Iron Strong
A Complete Guide To Using Plumbing Fittings For Joining Pex Pipe, Pvc And Copper - Dengarden

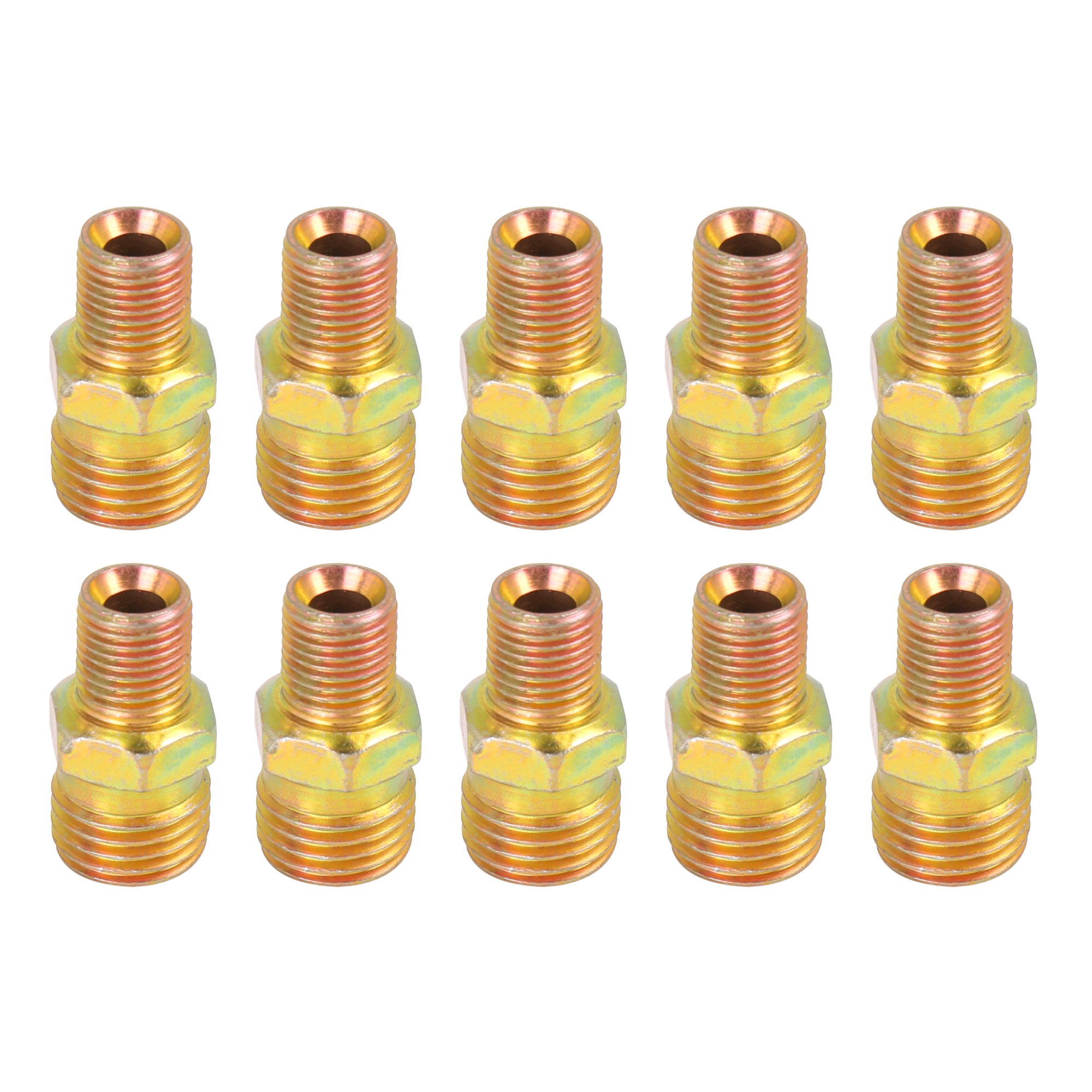

10Pcs 9/16'' To 3/8'' Male Thread Straight Iron Hose Pipe Fitting Connector For Car | Walmart Canada
